Bwg 22 Galvanized Iron Wire -

Short Description:

Bwg 22 galvanized iron wire introduction: The galvanized wire adopts high quality low carbon steel wire rod, anneal after drawing, then galvanized. It is with good quality, perfect tensile strength and elongation, common and heavy zinc coating, and has the merit of soft, no rust, high corrosion-a...


Product Detail

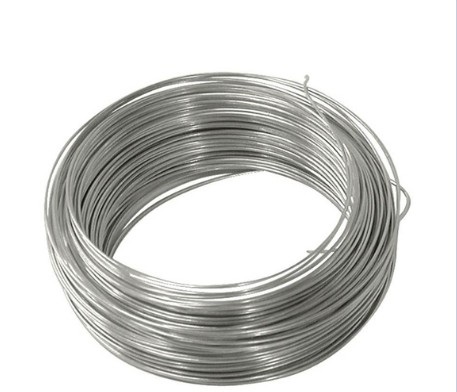

Bwg 22 galvanized iron wire introduction:

The galvanized wire adopts high quality low carbon steel wire rod, anneal after drawing, then galvanized. It is with good quality, perfect tensile strength and elongation, common and heavy zinc coating, and has the merit of soft, no rust, high corrosion-anti, etc.

Bwg 22 galvanized iron wire Specifications:

Material Low carbon steel Q195, Q235
Type Electro galvanized wire & hot dipped galvanized wire
Gauge 8 – 22 (0.7mm-4.2mm)
Package in rolls; plastic film inside, woven bag or hessian cloth outside.
Weight 25kg & 50kg/roll or as you need
Application Widely used in weaving wire mesh, redrawing, products packing, handcraft, binding for construction and daily use.

Galvanized iron wire Size:

Gauge (#) SWG (mm) BWG (mm)   Gauge (#) SWG (mm) BWG (mm)
8 4.064 4.191 16 1.626 1.651
9 3.658 3.759 17 1.422 1.473
10 3.215 3.404 18 1.219 1.245
11 2.946 3.048 19 1.016 1.067
12 2.642 2.769 20 0.914 0.889
13 2.337 2.413 21 0.813 0.813
14 2.032 2.108 22 0.711 0.711
15 1.829 1.829

Galvanized Iron Wire Application:

Hot-dip galvanized iron wire used in construction, handicrafts, woven wire mesh, express way fencing mesh, packaging of products and other daily uses.

Electro galvanized iron wire used in construction, express way fencing, binding of flowers and wire mesh weaving.

Packing

Bwg 22 galvanized iron wire: 1-1000kgs/coil, coil with plastic film inside and hessian cloth outside or weave cloth outside.
