BWG18 Black Twisted Iron Wire -

Short Description:

Description: Material : low carbon steel wire Wire Diamete : Wire diameter: From BWG8 to BWG22 Type: double and twisted Packing: as per customer’ requirement Applications: Double twist wire made of black annealed wire. It’s use two same sizes wire make them twist together. Has more stronger...


Product Detail

Description:

Material : low carbon steel wire

Wire Diamete : Wire diameter: From BWG8 to BWG22

Type: double and twisted

Packing: as per customer’ requirement

Applications:

Double twist wire made of black annealed wire. It’s use two same sizes wire make them twist together. Has more stronger than single wire. Also very popular in construction , Agriculture,Farm etcs .

Such wire is selling very well in South Amercia market,Such as Brazil Chile

Specifications:

Wire gauge size SWG(mm) BWG(mm) AWG(mm)
8 4.05 4.19 3.26
9 3.66 3.76 2.9
10 3.25 3.4 2.58
11 2.95 3.05 2.3
12 2.64 2.77 2.05
13 2.34 2.41 1.82
14 2.03 2.11 1.62
15 1.83 1.83 1.45
16 1.63 1.65 1.29
17 1.42 1.47 1.15
18 1.22 1.25 1.02
19 1.02 1.07 0.91
20 0.91 0.84 0.81
21 0.81 0.81 0.72
22 0.71 0.71 0.64
23 0.61 0.63 0.57
24 0.55 0.56 0.51
25 0.5 0.51 0.45

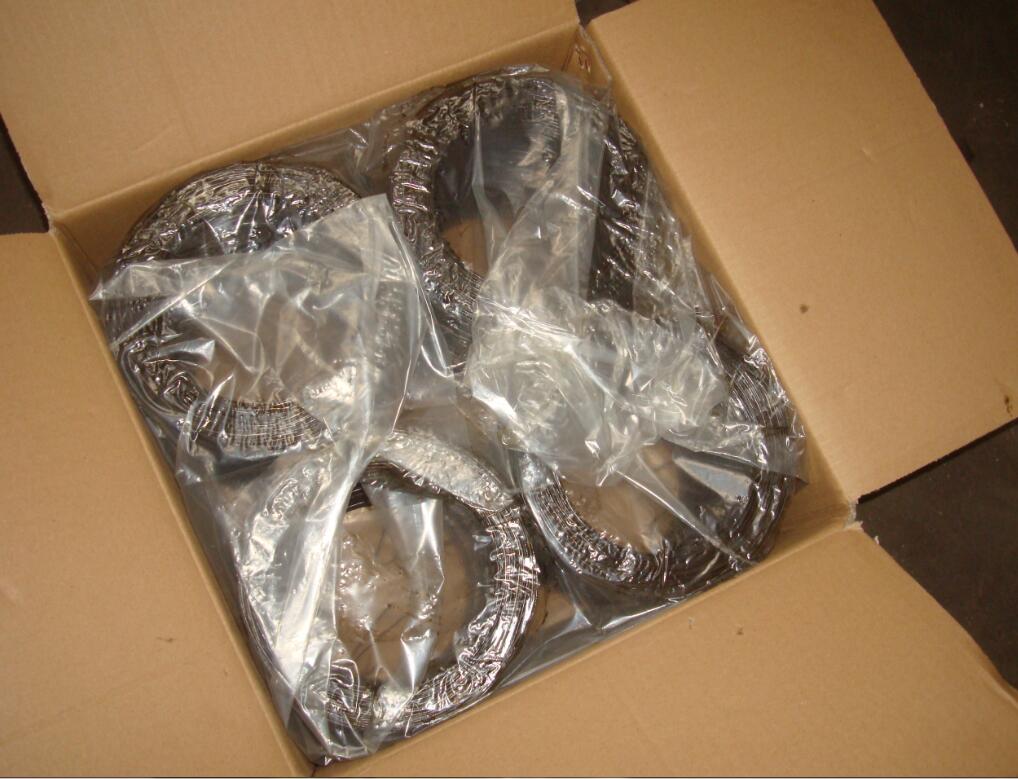

BWG18 black twisted iron wire Package:

Coils: 10 × 50 kg coils into 500 kg bundle, metal strapped without pallet.

Straightened lengths: 20 × 25 kg bundles or 10 × 50 kg bundles, poly and gunny wrapped with metal strapping, without pallet support.

Tie wire/belt packs: wrapped in greaseproof paper, 10 ×15 kg rolls into 150 kg carton, 64 × 150 kg cartons into 9600 kg pallet.
